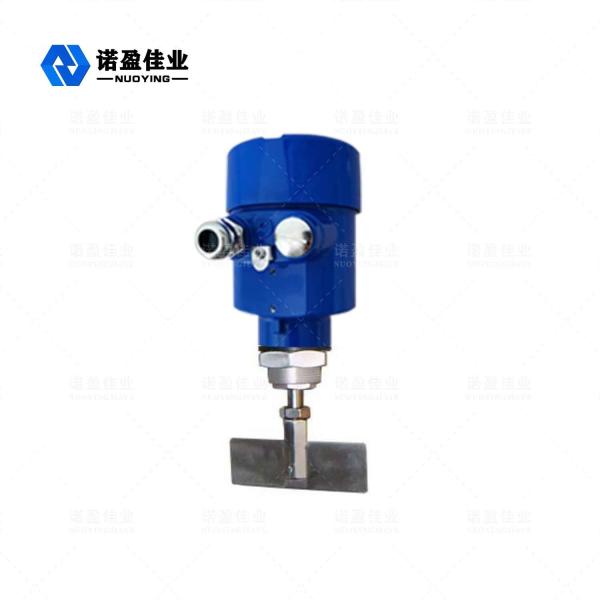

NYZX Double Seal Bearing Rotary Paddle Level Switch Flat Blade 200mm Probe Rod

  • 1
  • 2

Brand Name : NUOYINGJIAYE

Model Number : NYZX（Flat Blade）

Certification : CE,ATEX,SIL

Place of Origin : Xi'an,Shannxi,China

MOQ : 1pcs

Price : $150~$350/pcs

Payment Terms : T/T

Supply Ability : 500 pcs/per month

Delivery Time : 5-7 working days

Packaging Details : Carton, 80cm x 17cm x 24cm

Model : NYZX（Flat Blade）

Applications : powder, small particle

Bar material : 316 (optional)

Anti-hazard classification : Exia II CT 6 (optional)

Level of protection : IP67

Shell material : Aluminium (optional)

Insulation impedance : N 100MKQ (500VDC)

Dielectric density : N 0.4g/cm3

Contact Now

Double Seal Bearing NYZX Rotary Paddle Level Switch Flat Blade 200mm Probe Rod

NYZX Rotary Paddle Level Switch Flat Blade

NYZX series resistance rotary material level switch is a field control equipment used to detect the level of solid materials (powder, granules), and is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.The unique oil seal design prevents dust from infiltrating along the shaft.The motor performance of the imported anti-rotation switch is reliable, and the double sealed bearings can ensure continuous operation for a long time.Simple structure and convenient installation.Stable and reliable, and the torque can be adjusted.A variety of probe forms can be used in different occasions.

NYZX Rotary Paddle Level Switch Flat Blade Technical Parameter

Applications powder, small particle
Bar material 316 (optional)
Probe length 200mm (customizable as required)
Power supply 220VAC (optional)
Process temperature -40 - +130 °C
Process pressure 0~ 1.6MPa
Process connection flange (optional)
Dielectric density N 0.4g/cm3
Insulation impedance N 100MKQ (500VDC)
Dielectric strength 1500V lmin
Contact capacity 250V 5A (SPDT)
Moment 10kg*m (lN*m)
Power 3.0W
Electrical interface 3/4 nNPT
Shell material Aluminium (optional)
Level of protection IP67
Anti-hazard classification Exia II CT 6 (optional)

※ Note: Products can be customized according to the specific requirements of users!
